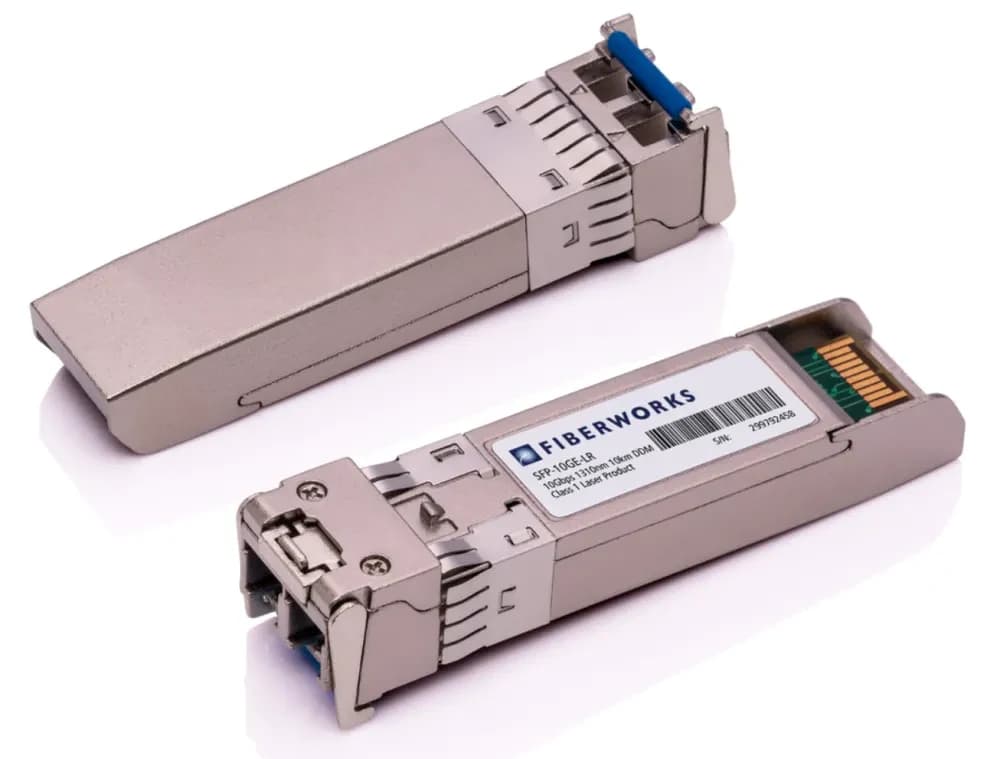

SFP-10GE-LR-FN

The SFP-10GE transceiver family are small form factor pluggable modules for bi-directional serial optical data communications such as 10GBASE Ethernet. The modules are compliant to the SFP+ MSA and are hot pluggable. Digital diagnostic functions are available via an I2C serial bus specified in the SFP MSA SFF-8472. The modules meet the requirements of the IEEE 802.3 10GBASE-SR/LR/LRM/LW/ER/ZR Ethernet standard and are suitable for interconnections in 10G Ethernet environments. The transceivers can also be used for a wide range of other protocols with bitrates between 600 Mbps and 11.1 Gbps. The family covers a wide range of applications, with 850 nm and 1310 nm versions available for multimode fiber and 1310 nmand1550 nmversions are available for singlemode fiber. Up to 400 m transmission on OM4/OM5 multimode fiber, 4700 MHz km   Up to 300 m transmission on OM3 multimode fiber, 2000 MHz*km Up to 40 km transmission on singlemode fiber at 1310 nm Up to 80 km transmission on si
