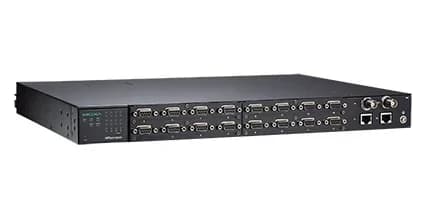

NPort S9650I-8B-2HV-IRIG-T

8-port RS-232/422/485 rugged device server with IRIG-B signal output on the serial ports, 2 10/100BaseT(X) ports with IEEE 1588v2 support, 88 to 300 VDC or 85 to 264 VAC, -40 to 85°C operating temperature, with IRIG-B BNC module Supports up to 4 managed Ethernet switch ports (fiber available with some optional network modules)  8/16-port RS-232/422/485 serial interface  Supports DNP3 and Modbus protocols  Ethernet redundancy with Turbo Ring/Chain and RSTP/STP supported  Real COM/TTY drivers for Windows and Linux  IEC 61850-3, IEEE 1613 (power substations) compliant  IEEE 1588v2 and IRIG-B time synchronization functions  Supports IEC 61850 MMS protocol  Security features based on IEC 62443/NERC CIP  -40 to 85°C wide operating temperature 6-port.3-in-1 rugged device server 16-port, RS-232/422/485, 2 10/100BaseT(X), -40 to 85°C 16-port rugged device server 16-port, RS-232/422/485, 2 10/100BaseT(X), -40 to 85°C
