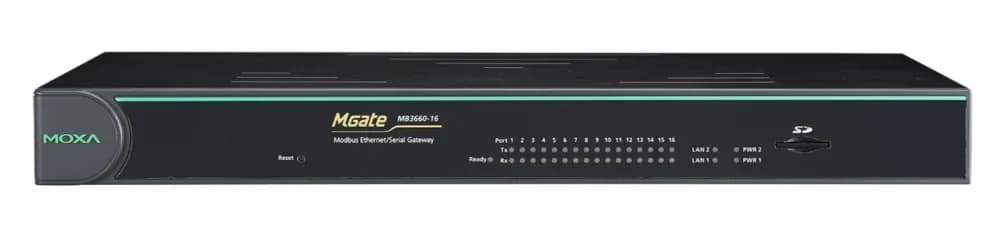

MGate MB3660I-16-2AC

Modbus gateway with dual LANs, dual AC power inputs, 16 RS-232/422/485 ports, 0 to 60°C operating temperature, 2 kV isolation 16 ports, DB9 male, Serial isolation 2 kV, input voltage 100-240 VAC (47-63 Hz) Supports Auto Device Routing for easy configuration  Supports route by TCP port or IP address for flexible deployment  Innovative Command Learning for improving system performance  Supports agent mode for high performance through active and parallel polling of serial devices  Supports Modbus serial master to Modbus serial slave communications  2 Ethernet ports with the same IP or dual IP addresses for network redundancy  SD card for configuration backup/duplication and event logs  Accessed by up to 256 Modbus TCP clients  Connects up to Modbus 128 TCP servers  RJ45 serial interface (for “-J” models)  Serial port with 2 kV isolation protection (for “-I” models)  Dual VDC or VAC power inputs with wide power input range
