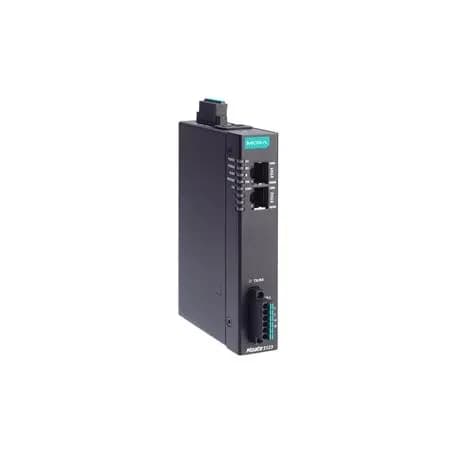

MGate 5123

Simultaneous protocol conversions from CANopen, J1939, and proprietary CAN (CAN 2.0A/B) to PROFINET and SNMP  Supports PROFINET I/O device and SNMP agent  Supports CANopen master, J1939, and proprietary CAN (CAN 2.0A/B)  Flexible deployment with Ethernet cascading and dual subnet  Embedded traffic monitoring/diagnostic information for easy troubleshooting  Easy device configuration via a web-based console  microSD card for configuration backup/duplication  Supports dual redundant DC power inputs and 1 relay output  CAN port with 2-kV isolation protection  Compliance with IEC 62443-4-2 Security Level 2 requirements
