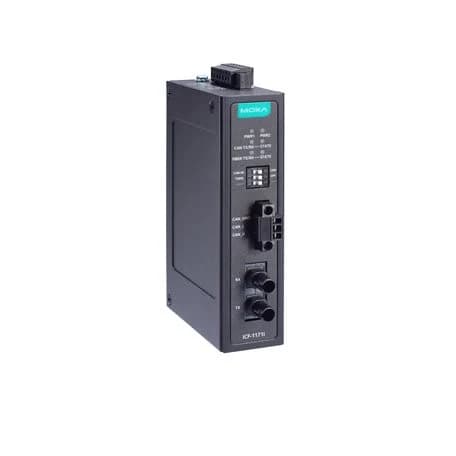

ICF-1171I-S-ST

Industrial CAN-to-fiber converter for distance extension, ST single-mode, -40 to 75°C   Transmits data for up to 40 km over optical fiber  Converts CAN signals to fiber and vice versa  Supports CAN 2.0A, CAN 2.0B, and CAN FD; conforms with the ISO 11898 standard  CAN 2.0 supports auto-baudrate  CAN 2.0 arbitration rate up to 1 Mbps  CAN FD arbitration rate up to 1 Mbps; data rate up to 5 Mbps  Dual power inputs for redundancy  Wide-temperature model available for -40 to 75°C environments  DIP switch for 120-ohm terminal resistance  Rotary switches for CAN 2.0/CAN FD arbitration and data rate configuration  LEDs for CAN bus diagnostics, fiber diagnostics, and power input status Industrial CANbus-to-fiber converter
