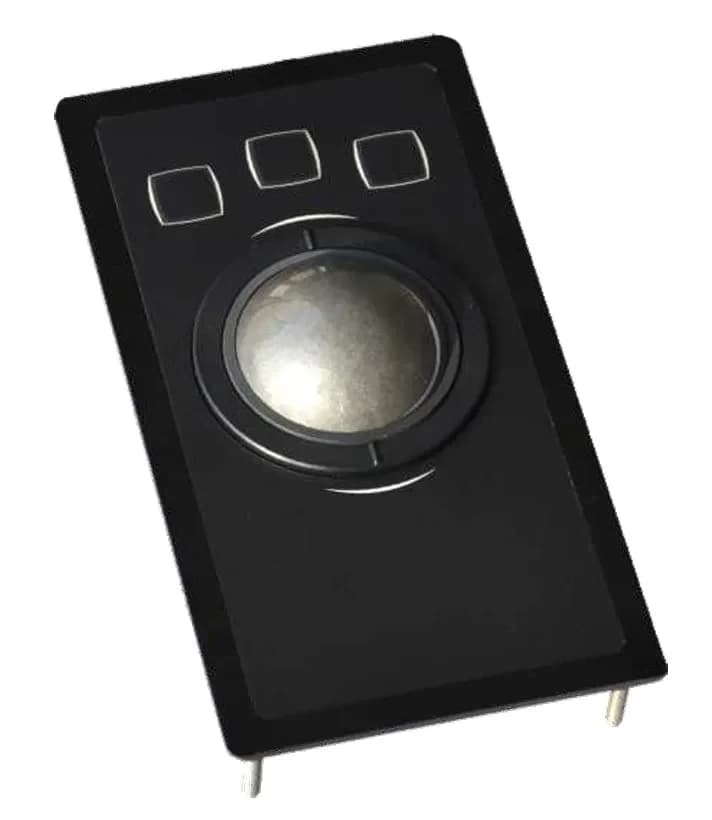

TBX50B1

IP67 sealed trackball 50 mm removable laser ball Black polyester front plate Short travel mouse switches Self-adjusting PTFE seal Accurate pointing control Easy cleaning Incl. alu carrier plate, electronics and cable.  Intended for front panel mounting into users’ cabinet or panel with a minimum of required space and mounting depth. Operation of the trackerball is possible at all angles, from horizontal to vertical mounting position. The electronic parts on the backside are protected by a metal cover. General technical specifications Sealing : IP67 static Ball diameter : 50,8 mm (2'') Ball material : polyester Tracking force : nom. 50 grams Keys : short travel switches, tactile feel switches with 0,3 mm travel and 2,55 N operating force Front layer : Black polyester front layer with embossed keys, scratch and chemical resistant Carrier plate : black brushed anodized aluminium Lifetime : >= 2 milli
