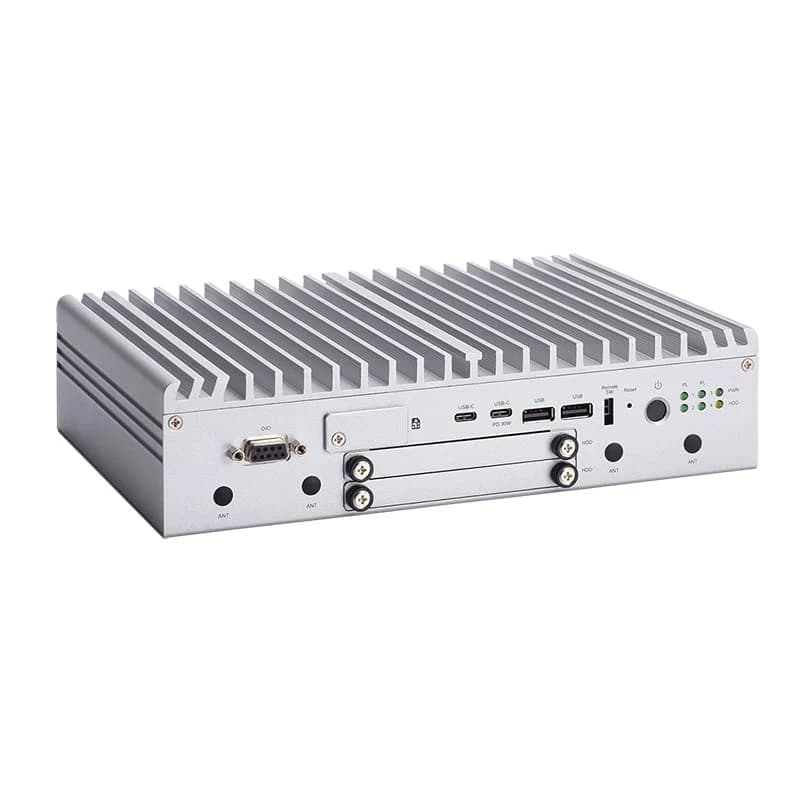

eBOX630B-U5-125H

Fanless Embedded AI System with Intel® Core™ Ultra Processor, HDMI/DisplayPort, 4 LAN, 4 COM, 6 USB, 2 USB Type-C, and 9 to 60 VDC  Intel® Core™ Ultra processor (Meteor Lake-U/H) Multiple compute engines : CPU , GPU (Intel® Arc GPU by H SKU) and NPU (Intel® AI Boost) Dual channel DDR5 5600 SO-DIMM, up to 64GB 6 USB and 2 USB Type-C with DisplayPort support 1 x GbE 4 x USB 3.2 Type-A 2 x RS-232/422/485 9 to 60 VDC power input 2 x RS-232 1 x HDMI 3 x 2.5GbE 1 x DisplayPort DDR5 9 to 60 VDC Triple-View USB 3.2 Supports multiple display interfaces with 1 HDMI 1.4b and 3 x DisplayPort (2 ports via USB Type-C) Three 2.5GbE LAN with TSN and 1 GbE Two 2.5" front-access swappable HDD/SSD and 1 M.2 Key M 2280 Wide operating temperature range from  -40°C to +70°C Wide power input range from 9 to 60 VDC Supports the OpenVINO™ toolkit for AI computing
