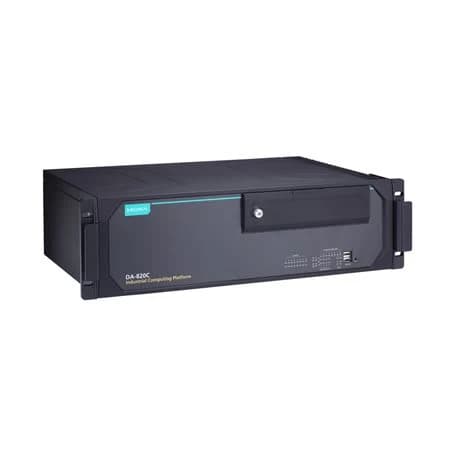

DA-820C-KL7-HH 3U computer

x86 computer with Intel® Core™ i7-7820EQ processor, 2 HDMI ports, 1 VGA port, 2 PS/2 ports, 4 Gigabit Ethernet ports, 2 RS/232/422/485 serial ports, 6 DIs, 2 DOs, 1 mSATA slot, 2 SSD slots, dual AC power, -25 to 55°C operating temperature IEC 61850-3, IEEE 1613, and IEC 60255 compliant power-automation computer  EN 50121-4 compliant for railway wayside applications  7th Generation Intel® Xeon® and Core™ Processor  Up to 64 GB RAM (two built-in SODIMM ECC DDR4 memory slots)  4 SSD slots, supports Intel® RST RAID 0/1/5/10  PRP/HSR technology for network redundancy (with a PRP/HSR expansion module)  MMS server based on IEC 61850-90-4 for integration with Power SCADA  PTP (IEEE 1588) and IRIG-B time synchronization (with an IRIG-B expansion module)  Security options such as TPM 2.0, UEFI Secure Boot, and physical security  1 PCIe x16, 1 PCIe x4, 2 PCIe x1, and 1 PCI slots for expansion modules  Redundant power supply (100 to 240 VAC/VD
